Multimode Fiber Optic Pigtail OM3 Om4 Fiber Patch Cable 0.9 Mm / 2.0 Mm

Sunwise Optical Communication Equipment Co.,Ltd

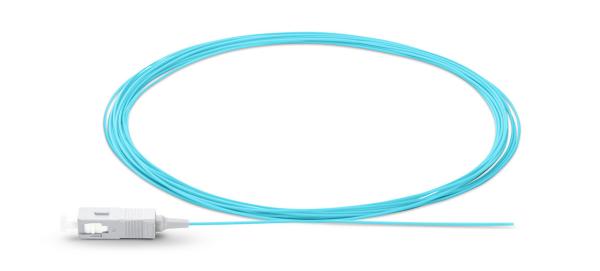

Multimode Fiber Optic Pigtail OM3 Om4 Fiber Patch Cable 0.9 Mm / 2.0 Mm

  • 1
  • 2

Brand Name : Sunwise

Model Number : SCUPC

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment

Application : Patch Cords

Product name : fiber optic pigtail

Polish Type : UPC

Color : Yellow

Cable diameter : 0.9/2.0/3.0mm

Fiber Mode : OM3/OM4

Packaging Details : jumper 63 * 63 * 45 ; carton equipment / optical cable,carton + wooden optical cable shaft

Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days

Payment Terms : Western union,T/T,PayPal

Contact Now

Multimode Fiber Optic Pigtail OM3 Om4 Fiber Patch Cable 0.9 Mm / 2.0 Mm


Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Please note: E2000 is an LSH connector with a dust-proof cover.

Connector Type

LC/SC/FC/ST/LSH

Polish Type

UPC

Fiber Mode

OM3/OM4

Wavelength

850/1300 nm

Fiber Count

Simplex

Cable Jacket

PVC/LSZH/OFNP

Fiber Grade

G.651 (OM3)/Bend Insensitive (OM4)

Minimum Bend Radius

15 mm/7.5 mm

Cable Diameter

0.9/2.0 mm

Jacket Color

Qqua

Insertion Loss

≤0.3 dB

Return Loss

≥50 dB

Attenuation at 850nm

3.0 dB/km

Attenuation at 1300nm

1.0 dB/km

Operating Temperature

-40~75°C

Storage Temperature

-45~85°C

Features :

1; The connectors are comply with IEC, Telcordia-GR-326-Core standards;

2; Different size & color boot option;

3; Low insertion loss; High return loss;

4; 100% interferometer measurement;

5: Typical IL≤0.20dB;

6. Max IL≤0.25dB;

7. RL SM≥50dB, APC≥60dB, MM≥20dB.

8. Durability(500mating time): IL≤0.25dB.

9. Operating / storage temperature:- 20~+70°C

Application :

1; Telecommunication networks;

2; Local area networks; CATV;

3; Active device termination;

4; Data center system networks;

FAQ

Q1. About the price?
Re. We usually quote within 12 hours after we confirm the technical data of your products.

Q2. What's the payment method?
Re. We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

Q3. What are your terms of payment?
Re. 30% in advance,and 70% before shipment

Q4. How to ship the items to me?
Re. Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

Q5. How long is your delivery time?
Re. The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.

Q6. Can you send me a free sample?
Re. Yes,We are willing to send free sample,if you would like to pay the shipping costs.

Q7. Do you accept OEM or ODM?
Re. Yes,we're factory. any your customized requirements we can do our best to help you realize.
